Fluorescent Sublimation Ink for Offset Printing Machine (ZHONGLIQI)
1. Use Principle of sublimation ink
It is used on all kinds of offset machine (one color, two color and four color machines) . With the ink, first print image on paper, then
transfer the image onto various materials by heat transfer press, especially for polyester fabric. Under high temperature, the
ink will become gas and go into fabric.
2.The printing process just needs 3 steps
1. Print the image on paper, and normal paper is ok.
2. Put the printed paper on substrate, such as polyester and nylon fabric.
3. Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be
transfer printed from paper onto the substrate.
1.Suitable fabric
Polyester fabric.
Triacetate fabric.
Nylon fabric.
Acrylic fabric.
Polypropylene nitrile.
2.Printing materials
Offset paper.
Coated paper.
Cardboard.
Chrome paper.
Calendered paper.
1.The following is the transfer printing parameters for your reference
|
Name of fabric |
Transfer temperature |
pressure |
Time |
|
Polyester fabric |
205°C~220°C |
0.5kg/cm2 |
10~30 seconds |
|
Polyester deformation fabric low elastic |
195°C~205°C |
0.5kg/cm2 |
30 seconds |
|
Triacetate fabrics |
190°C~200°C |
0.5kg/cm2 |
30~40 seconds |
|
Nylon fabric |
195°C~205°C |
0.5kg/cm2 |
30~40 seconds |
|
Acrylic fabric |
200°C~210°C |
0.5kg/cm2 |
30 seconds |
|
Two acetate fiber fabric |
185°C |
0.5kg/cm2 |
15~20 seconds |
|
Polypropylene nitrile |
190°C~220°C |
0.5kg/cm2 |
10~15 seconds |
2.Dye degree:(European Standard)
|
Color fastness |
||||
|
Color |
Magenta(HPA604) |
Yellow(HPA204) |
Blue(HPA404) |
Black(HPA804) |
|
Rank |
5-6 |
6 |
4 |
4 |
1.Storage Indications
Products in their original unopened containers maintain their characteristics for two year if stored in a well ventilated place with
a temperature between + 5° and + 40°C.Products opened, but immediately closed after use, have a shelf life of at least 12 months.
2.Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
Henan Zhongliqi Printing Material Company Limited is located in Xinxiang, Henan province, China. We specialize in offset
sublimation ink and we are manufacturer in this line over 10 years.

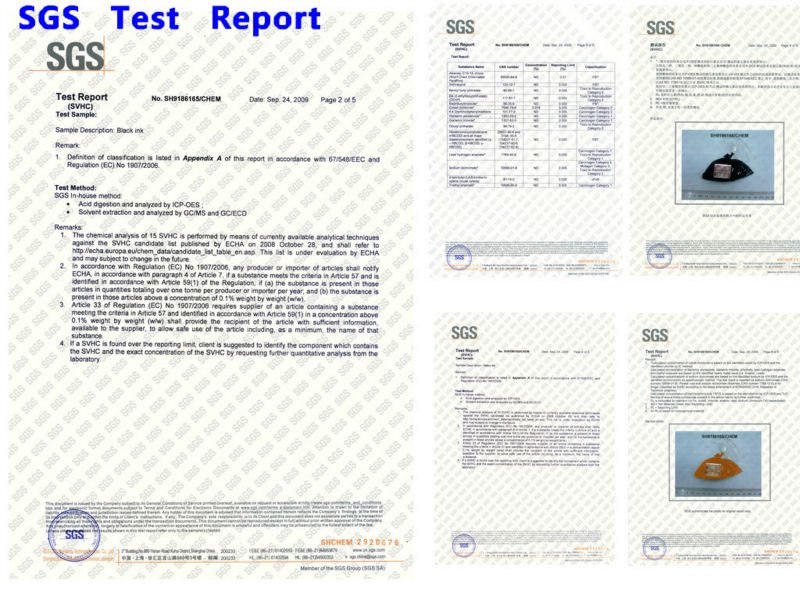

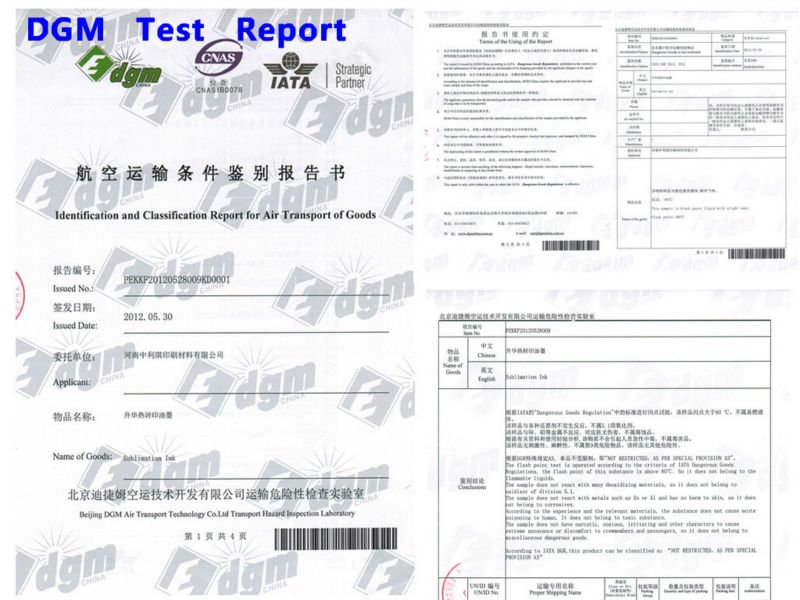

We passed SGS, MSDS and DGM.
