Sublimation screen printing ink for fabric

PDF Format

Sublimation screen printing ink for fabric For Our Sublimation screen ink could be used on all kinds

INQUIRY

Product details

Sublimation screen printing ink for fabric

For Our Sublimation screen ink could be used on all kinds of screen press.Because it belongs to gas shading, so first print image on paper, second put the paper on fabric, and then press the paper with transfer machine.Under the temperature about 190°C-220°C,the ink on paper will become gas and go into fabric. So the image will be from paper to fabric.
Description
1. Such ink non-toxic, harmless, no smell, no adverse effects on the human body
2. Heat transfer in a variety of chemical products, polyester thin film and metal-coated board,
3. Used for a variety of domestic and imported heat transfer machine
Use method
The desired text or logo printed on wood pulp paper or kraft paper (not including network printing), after drying you can transfer.
Advantages
1. Transfer color is bright, clear
2. Resistant to the washing, sun, perspiration and friction printed fabric
(Ps: available on-board thermal transfer in the metal coating flat-plate thermal transfer machines).
Detailed method before using this ink,first stir and then use.depending on thin or thick,add water or thickener.
Depending on the detailed information of required text or graphics, with 120-300 mesh screen printing, per kg heat transfer ink could print 10-17㎡,transfer for at least 3-4 times.It surely can improve the effectiveness and reduce costs.
Paper requirements: silk screen with 80 grams, 120 grams kraft paper (roll), you could transfer more than 3-10 times, not coke, not bad and not to fight wrinkles, suitable for the real printing the large of Yin version.
Requirements of screen printing printing the required text or pattern, the specific use of the number of mesh screen should be based on the number of transfer required and the transfer of fine text pattern, such as transfer three times with 200 mesh printing,120 mesh printing can transfer more than 4 times.
Reference number
Red color ratio is 100% in magenta ,35-40% yellow,after transfer ,get a big red.
Positive blue color ratio is:100% green ,20% magenta, after transfer, get it.
Positive green color ratio is:80% green,90% yellow, after transfer, get it.
Printed list of the desired temperature (for reference)

Fabric name	transfer temperature	pressure	time
Polyester fabric	205℃～220℃	0.5kg/cm	10～30seconds
Polyester deformation fabric Low elastic	195℃～205℃	0.5kg/cm	30 seconds
Triacetate fabric	190℃～200℃	0.5kg/cm	30～40 seconds
Nylon fabric	195℃～205℃	0.5kg/cm	30～40 seconds
Acrylic fabric	200℃～210℃	0.5kg/cm	30 seconds
Two vinegar fabric	185℃	0.5kg/cm	15～20 seconds
Polypropylene nitrile	190℃～220℃	0.5kg/cm	10～15secods

Pls pay attention: Aluminum plate, stainless steel, copper and porcelain by the layer can be printed colorful pictures, thermal transfer the desired temperature can refer to the temperature of the polyester fabric.

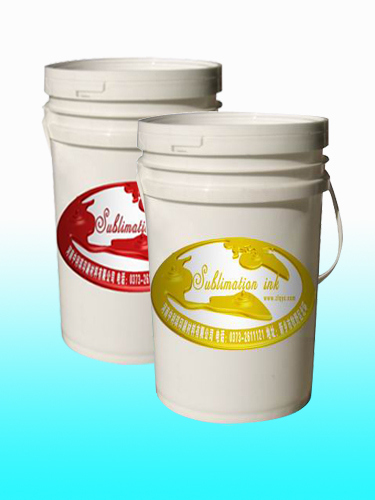

Packaging specification: 1-2 kg/tin Shelf life is two years (from date of production)
