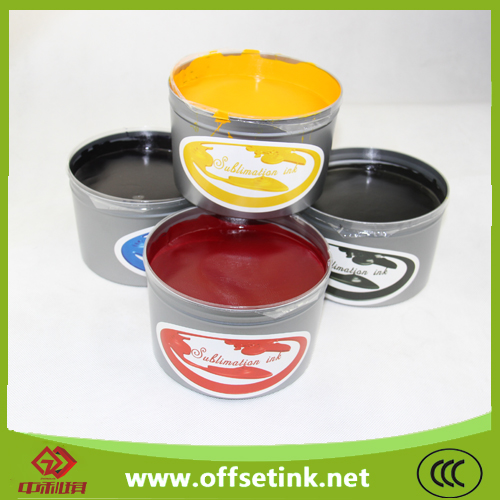

Fabric sublimation heat transfer ink
The sublimation heat transfer ink made in our company owns good fluency, high rate of metastasis and bright color
stability. Our ink passed SGS testing and reached the international quality certification .The quality is good and printing
precision is high, vivid color, fine design, rich color, and strong color fastness.
Advantages:
1. Factory direct supply.
2.Rich vibrant colors
3.Produces deep black, neutral grays, amazing reds
4.Fridenly to the environment
5.Passed SGS test
6.Strict quality control by professional inspectors
Such kind of ink is used on offset machine, if you want to print a perfect image, you just need only 3 steps:
1. Put the image on paper, normal paper is ok.
2. Put the printed paper on substrates, such as polyester and nylon fabric.
3. Put the paper and substrate on the heat transfer machine. When temperature reach 180-220 degrees, the image will
be transferred from the paper onto substrate.
Technology Parameters are as follows:
Use Scope: Applicable to single-color, two-color and multi-color offset printing machine which supply single paper once.
Printing Material:Offset Paper, Coated paper, Cardboard.
sublimation heat transfer ink characteristics:
(1).Be able to adapt to high-speed printing needs;
(2).Under normal circumstances to maintain the printing press ink fountain 36 hours
not conjunctiva.
Collor Serise:C-Cyan M-Magenta Y-Yellow K-Black
Use Method: under normal printing conditions, directly on the machine to use.
Heat Transfer Temperature for sublimation heat transfer ink :
|
Name of fabric |
Transfer temperature |
pressure |
Time |
|
Polyester fabric |
205°C~220°C |
0.5kg/cm2 |
10~30 seconds |
|
Polyester deformation fabric low elastic |
195°C~205°C |
0.5kg/cm2 |
30 seconds |
|
Triacetate fabrics |
190°C~200°C |
0.5kg/cm2 |
30~40 seconds |
|
Nylon fabric |
195°C~205°C |
0.5kg/cm2 |
30~40 seconds |
|
Acrylic fabric |
200°C~210°C |
0.5kg/cm2 |
30 seconds |
|
Two acetate fiber fabric |
185°C |
0.5kg/cm2 |
15~20 seconds |
|
Polypropylene nitrile |
190°C~220°C |
0.5kg/cm2 |
10~15 seconds |
Dying solid (grade)
|
exposure to sunlight |
red |
yellow |
green |
black |
|
5-6 |
6 |
4 |
4 |
Please Note:
Aluminum plate, stainless steel, copper and porcelain coated, the thermal transfer the desired temperature can refer to
the temperature of the polyester fabric.
Package Specifications
1-2 kg/tin Shelf life of three years (from date of production)
