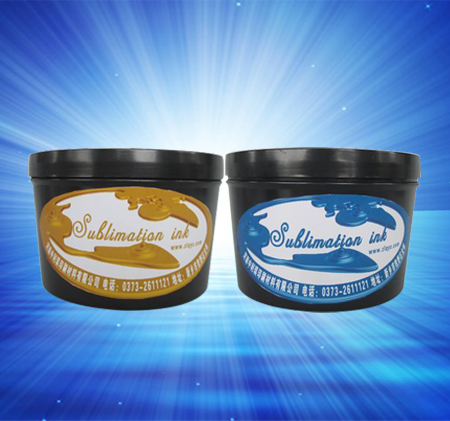

Fabric print sublimation ink for offset machine
Sublimation Offset ink created by zhongliqi to save the cost, this sublimation offset ink is same as normal offset printing on normal paper, after printed images then use our Heat press to Transfer images to textile ( basic on polyester material).Under the temperature of 180°C-220°C, they turn into a gas and permanently bond to 100% polyester fabric or items that have a polymer coating.
The result is a premium, full-color, photographic-quality image that will not crack, peel or wash away from the substrate to which it was applied.
Use Scope:Apply to single-color,two-color and multi-color offset printing machine which supply single paper once.
Transferred materials can be fabric,cotton,mug,metal,wood, ceramic and etc.Fabric can be transferred directly,other materials need sublimation coating.
Printing Materials :coated paper,coating paper,offset paper,or cardboard.
Product characteristics :
(1),be able to adapt to high-speed printing needs;
(2),under normal circumstances to maintain the printing press ink fountain 36 hours not conjunctiva.
Printing Advantages:excellent ink-water balance,dot reproduction clear,complete solid fast, good stability on the machine.
Our Suggestion:Before use the ink,play a sample plate printing,if the deviation is not great,and then determinethe comp engraving and printing. Because sublimation ink for gas coloring so can not according to the proportion of ordinary printing Fapai printing.
Application examples
a. To get 50%C on fabric,the color on paper should be 30%C;
b. To make red PS-plate,the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate,the ratio is 100%C and 20%M;
d. To make green PS-plate,the ratio is 80%C and 90%Y;
e. To get yellow like Asian skin,the ratio is 10%~11%M and a little cyan.Cyan can be adjusted according to your requirment.
Transfer Temperature---Aluminum plate,stainless steel,copper and porcelain coated,the thermal transfer the desired temperature can refer to the temperature of the polyester fabric.
|
Fabric name |
transfer temperature |
pressure |
time |
|
Polyester fabric |
205¡æ¡«220¡æ |
0.5kg/cm |
10¡«30seconds |
|
Polyester deformation fabric Low elastic |
195¡æ¡«205¡æ |
0.5kg/cm |
30 seconds |
|
Triacetate fabric |
190¡æ¡«200¡æ |
0.5kg/cm |
30¡«40 seconds |
|
Nylon fabric |
195¡æ¡«205¡æ |
0.5kg/cm |
30¡«40 seconds |
|
Acrylic fabric |
200¡æ¡«210¡æ |
0.5kg/cm |
30 seconds |
|
Two vinegar fabric |
185¡æ |
0.5kg/cm |
15¡«20 seconds |
|
Polypropylene nitrile |
190¡æ¡«220¡æ |
0.5kg/cm |
10¡«15secods |
Dyeing solid (grade)
|
Light fastness |
red |
yellow |
green |
black |
|
5-6 |
6 |
4 |
4 |
Packing specification:1kg/tin 12kg/carton Shelf life is three years (from date of production )
