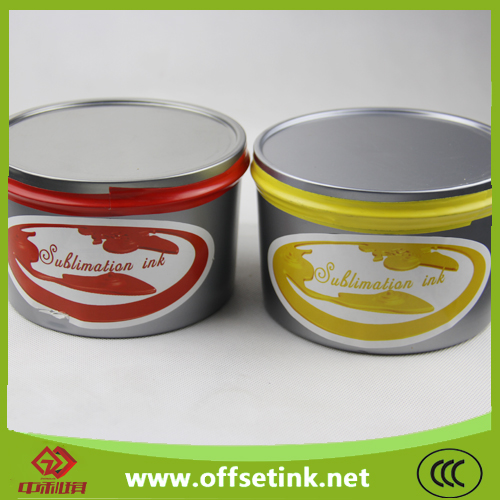

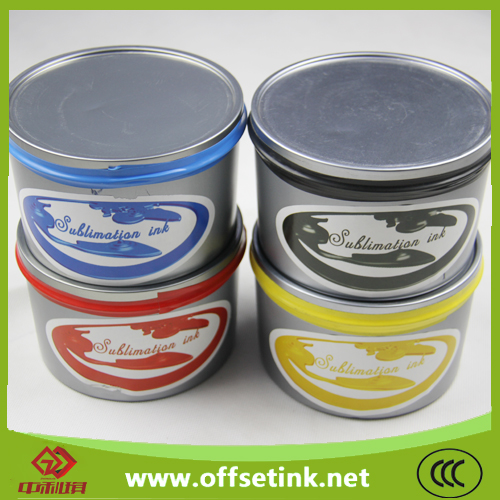

Dye Sublimation Ink for Litho Transfer Printing


Profile of Dye Sublimation Ink
Sublimation inks are designed to apply a mirror image onto paper for transfer to the final substrate. The prints are transferred via heat
and pressure onto most polyester or synthetic materials. When first printed onto paper, sublimation inks appear to be weaker and duller
than standard inks, however when transferred onto suitable substrates, the dyes develop their true color strength and brilliance.

1. Use Principle
It is used on all kinds of offset machine. With the ink, first print image on paper, then transfer the image onto various materials by heat
transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and go into fabric.

2. Printing Techniques
OFFSET (one color, two color and four color machines).

3. Colors
CMYK (Cyan, Magenta, Yellow and Black).

4. Specific Supports
Coated paper, offset paper, chrome paper, calendered paper from 80-90 gr/m² with dimensional stability.

5. Suitable Fabrics
Polyester fabric.
Triacetate fabric.
Nylon fabric.
Acrylic fabric.
Polypropylene nitrile fabric.

6. Use Method
(1)Be able to adapt to the demand for middle-speed or high-speed printing.
(2)During the normal condition, use the ink on the machine directly.

7. The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be transfer printed
from paper onto the substrate.

8.  Product Characteristics Product characteristics
* No Crust
a.Granula size is less than 5 micron.
b.No crust in 7 days. (open the cover)

* Safety
Passed SGS,DGM,MSDS,totally environment-friendly!

* Advantages
Good stability on the machine,clear dot reproduction,excellent ink-water balance.
Be able to adapt to the demand for middle-speed or high-speed printing.
During the normal condition, use the ink on the machine directly.

*P.S. please make samples before the final printing to confirm the exactly image.

9. Transfer temperature
About 180~220°C

10. Transfer time
About 15~40 seconds

The following is the transfer printing parameters for your reference
