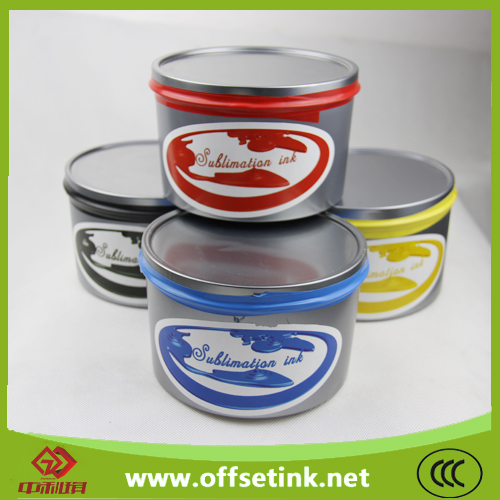

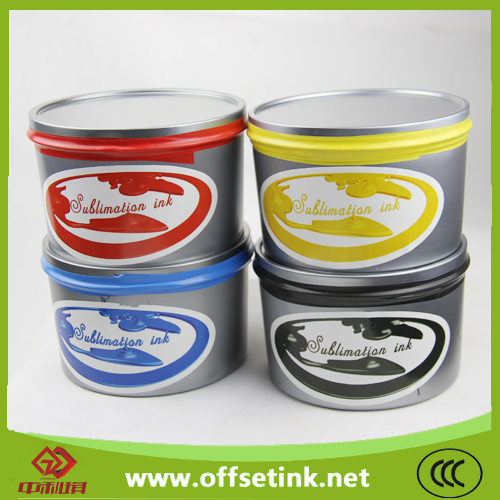

Offset Sublimation Transfer Printing Ink (1kg/tin)

Offset Sublimation Transfer Printing Ink (1kg/tin)

For Any offset Printing machine Forsublimation transfer printing On 80-90gr/m transfer paper With lo
INQUIRY
Product details


For Any offset Printing machine
For sublimation transfer printing
On 80-90gr/m² transfer paper
With lower cost

Sublimation Transfer Characteristics
High transfer rate.
Excellent color reproduction, gorgeous color, not color cast.
Applicable to synthetic fabrics such as polyester fabric, smooth feel comfortable, no hard feeling.
Transferred pattern scratch-resistant, washable, non-cracking, no peeling, no fading, and good weather resistance.

1.Use Principle
It it used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image onto various
materials by heat transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and
go into fabric.

2.Use Scope
Offset (one color, two color and four color machines)

3.Use Method
(1)Be able to adapt to the demand for middle-speed or high-speed printing.
(2)During the normal condition, use the ink on the machine directly.

4.The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will
be transfer printed from paper onto the substrate.

5.Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile.

6.Transfer Paper
Coated paper, offset paper,chrome paper and calendered paper.
Transfer paper should be 80-90 gr/m2 with dimensional stability.

7.Colors
Magenta,Yellow,Cyan,Black.

8.Advantage
(1)Good stability on the machine,clear dot reproduction,excellent ink-water balance.
(2)Be able to adapt to the demand for middle-speed or high-speed printing.
(3)During the normal condition, use the ink on the machine directly.

9.Transfer temparature
About 185~220°C

10.Transfer time
About 20~40 seconds

The following is the transfer printing parameters for your reference
Name of fabric Transfer temperature pressure Time
Polyester fabric 205°C~220°C 0.5kg/cm2 10~30 seconds
Polyester deformation fabric low elastic 195°C~205°C 0.5kg/cm2 30 seconds
Triacetate fabrics 190°C~200°C 0.5kg/cm2 30~40 seconds
Nylon fabric 195°C~205°C 0.5kg/cm2 30~40 seconds
Acrylic fabric 200°C~210°C 0.5kg/cm2 30 seconds
Two acetate fiber fabric 185°C 0.5kg/cm2 15~20 seconds
Polypropylene nitrile 190°C~220°C 0.5kg/cm2 10~15 seconds

Dye degree:(European Standard)

Color fastness
Color Magenta(HPA604) Yellow(HPA204) Blue(HPA404) Black(HPA804)
Rank 5-6 6 4 4

Please be noted
The control of the colors is always carried out after the transfer of the final supports.
The relationship between the temperature and the time of contact is important in order to have
the optimal color resistance and ink penetration (the longer the time of transfer, the better the ink penetration of the fabric).

Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
