sublimation ink for offset printing

PDF Format

1.Use Principle It it used on all kinds of offset machine. With the ink,first print image on paper,

INQUIRY

Product details

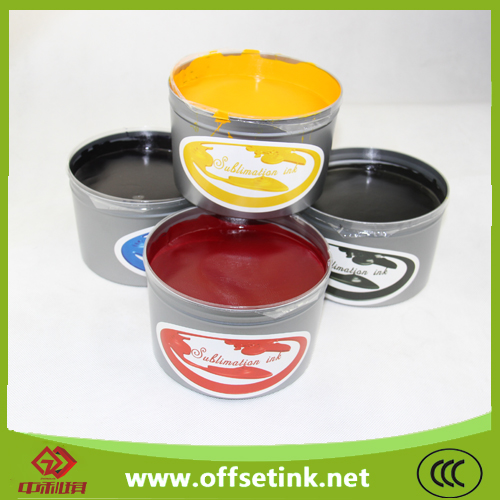

Sublimation Ink For Offset Printing

1.Use Principle

It it used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image onto various
materials by heat transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and
go into fabric.

2.Use Scope
Offset (one color, two color and four color machines)

3.Use Method
(1)Be able to adapt to the demand for middle-speed or high-speed printing.
(2)During the normal condition, use the ink on the machine directly.

4.The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will
be transfer printed from paper onto the substrate.

5.Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile.

6.Transfer Paper
Coated paper, offset paper,chrome paper and calendered paper.
Transfer paper should be 80-90 gr/m2 with dimensional stability.

7.Colors
Magenta,Yellow,Cyan,Black.

8.Advantage
(1)Good stability on the machine,clear dot reproduction,excellent ink-water balance.
(2)Be able to adapt to the demand for middle-speed or high-speed printing.
(3)During the normal condition, use the ink on the machine directly.

9.Transfer temparature
About 185~220°C

10.Transfer time
About 20~40 seconds

The following is the transfer printing parameters for your reference

Name of fabric	Transfer temperature	pressure	Time
Polyester fabric	205°C~220°C	0.5kg/cm2	10~30 seconds
Polyester deformation fabric low elastic	195°C~205°C	0.5kg/cm2	30 seconds
Triacetate fabrics	190°C~200°C	0.5kg/cm2	30~40 seconds
Nylon fabric	195°C~205°C	0.5kg/cm2	30~40 seconds
Acrylic fabric	200°C~210°C	0.5kg/cm2	30 seconds
Two acetate fiber fabric	185°C	0.5kg/cm2	15~20 seconds
Polypropylene nitrile	190°C~220°C	0.5kg/cm2	10~15 seconds

Dye degree:(European Standard)

Color fastness
Color	Magenta(HPA604)	Yellow(HPA204)	Blue(HPA404)	Black(HPA804)
Rank	5-6	6	4	4

Please be noted
The control of the colors is always carried out after the transfer of the final supports.
The relationship between the temperature and the time of contact is important in order to have
the optimal color resistance and ink penetration (the longer the time of transfer, the better the ink penetration of
the fabric).

Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
